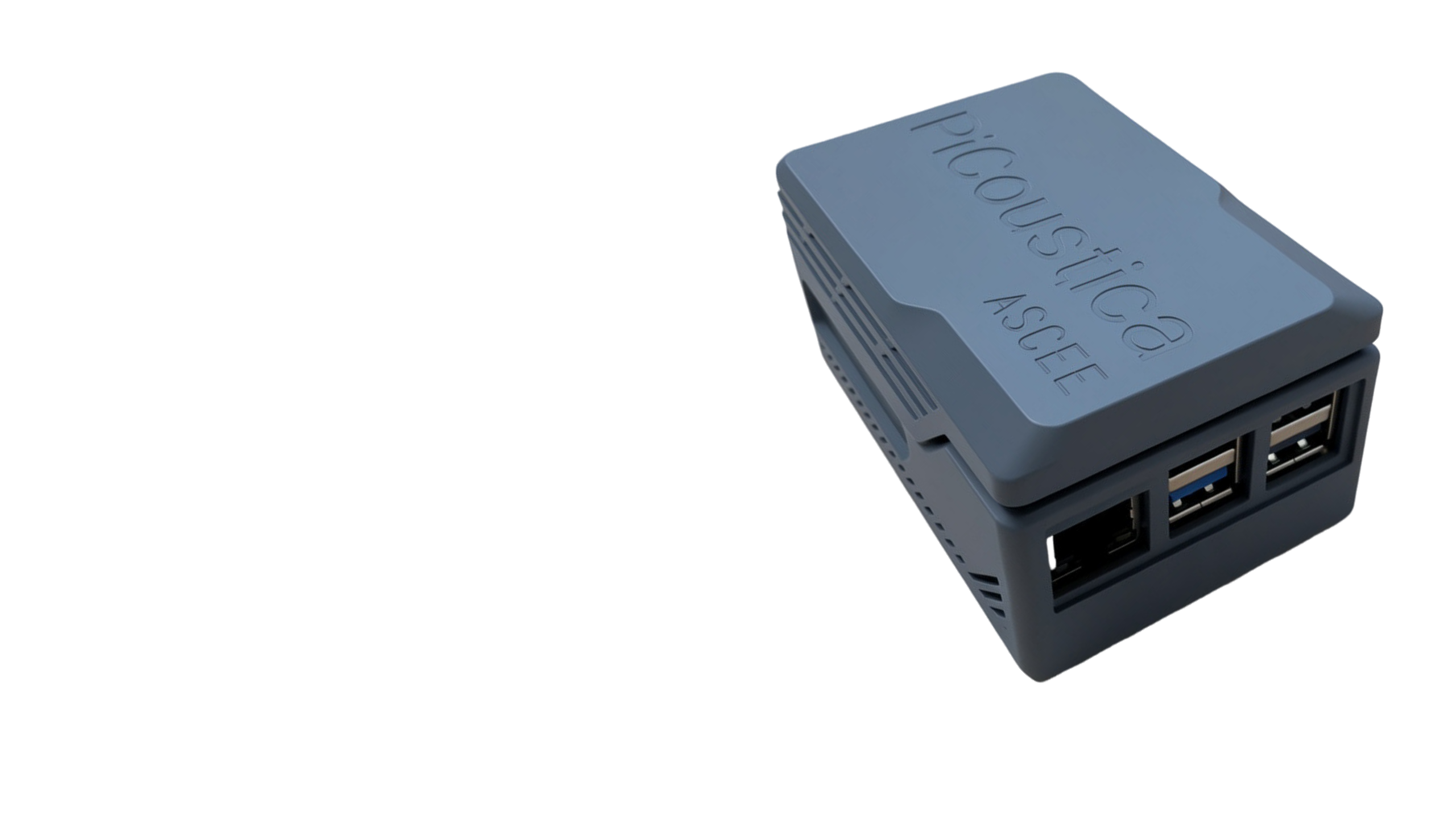

PiCoustica turns a Raspberry Pi into a self-contained all-in-one acoustic analysis instrument. It captures, processes and analyses sound in real time and calculates calibrated levels in dB SPL. Power it on and it is ready within seconds, with nothing else to install.

Pre-order now Discover the features

Runs stand-alone
256 GB SSD onboard
Measurement and analysis software included
No network required

Why PiCoustica

An acoustic lab in a single box

Everything you need for professional acoustic data acquisition. From sensor to analysis: acquisition, calibrated sound-level metering and spectral analysis in one stand-alone device.

2-channel DAQ

Two inputs with 24-bit ADC's and IEPE support, compatible with measurement microphones and accelerometers.

Runs stand-alone

A complete lab measurement unit. Power it on and your measurement interface is ready in a couple of seconds.

No network connection required

Measure anywhere. PiCoustica does not need internet, a cloud service or a license server to operate.

256 GB SSD onboard

You will not easily run out of disk space. More than 80 hours of two-channel recording at 48 kHz.

Measurement and analysis software included

PiCoustica is provided with batteries included. It comes with ACME pre-configured.

Competitive all-in price

€ 1,399.- all-in for the measurement hardware and the software, including a perpetual license and updates.

Hardware

A Raspberry Pi with a professional DAQ front-end

PiCoustica is a Raspberry Pi based acoustic data acquisition and analysis system. The hardware combines a Raspberry Pi model 5 B with an analog input front-end that includes IEPE.

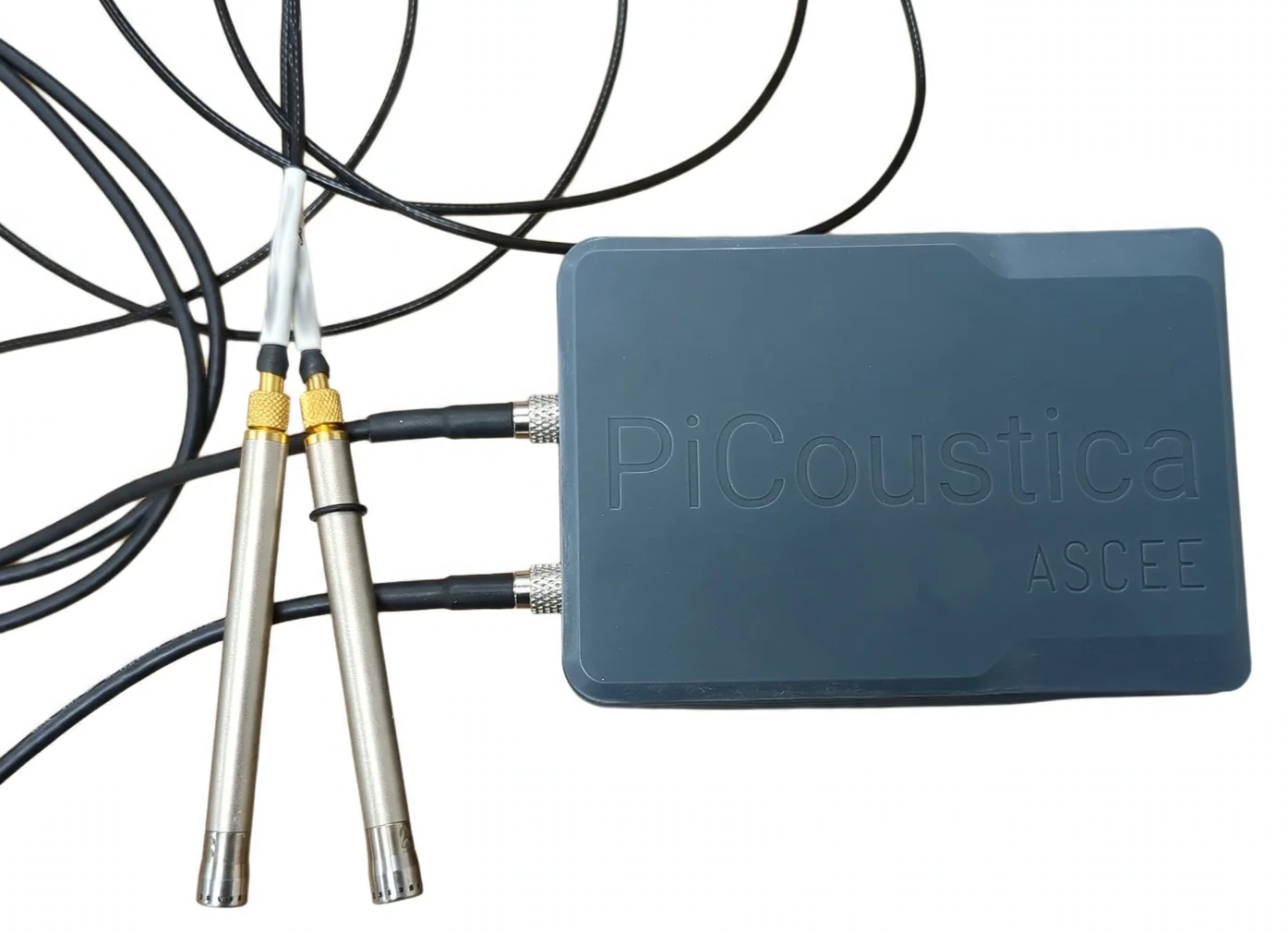

PiCoustica provides two synchronous analog inputs, with separate ADC's. The connectors are 10-32 coaxial, but we provide adapter cables, such that familiar BNC females connectors can be connected.

The Raspberry Pi provides a HDMI output. Connect a monitor, power supply and a keyboard + mouse and your data aquisition can start!

Base platform Raspberry Pi 5 Model B, 8GB RAM
Input channels 2, single-ended with IEPE
Resolution 24-bit
Input coupling DC, or AC +/- IEPE
Self noise 207 nV/√Hz
Sample rate From 10 kHz up to 51.2 kHz
Input range ±5 V AC-coupled
Connectors 10-32 coax & screw (female).
Cables 2x adapter cables to female BNC
Onboard storage 256 GB SSD
Recording time ≈ 80 h (2 ch @ 48 kHz)
Network WiFi and LAN (none required)

Software

Measurement and analysis software is pre-configured

ACME (ACoustic Measurement Environment) is a multi-purpose acoustic measurement and analysis tool. On PiCoustica it comes fully installed and configured for the onboard inputs. Power on the Raspberry Pi and ACME starts, ready to measure within a couple of seconds. Nothing further to install, nothing else to set up.

Measure

DAQ configuration presets: sample rate, channel selection, IEPE / AC coupling and channel naming
Measurement recording, with automatic file numbering and annotation.
Open measurement file format: HDF5, no vendor lock-in.

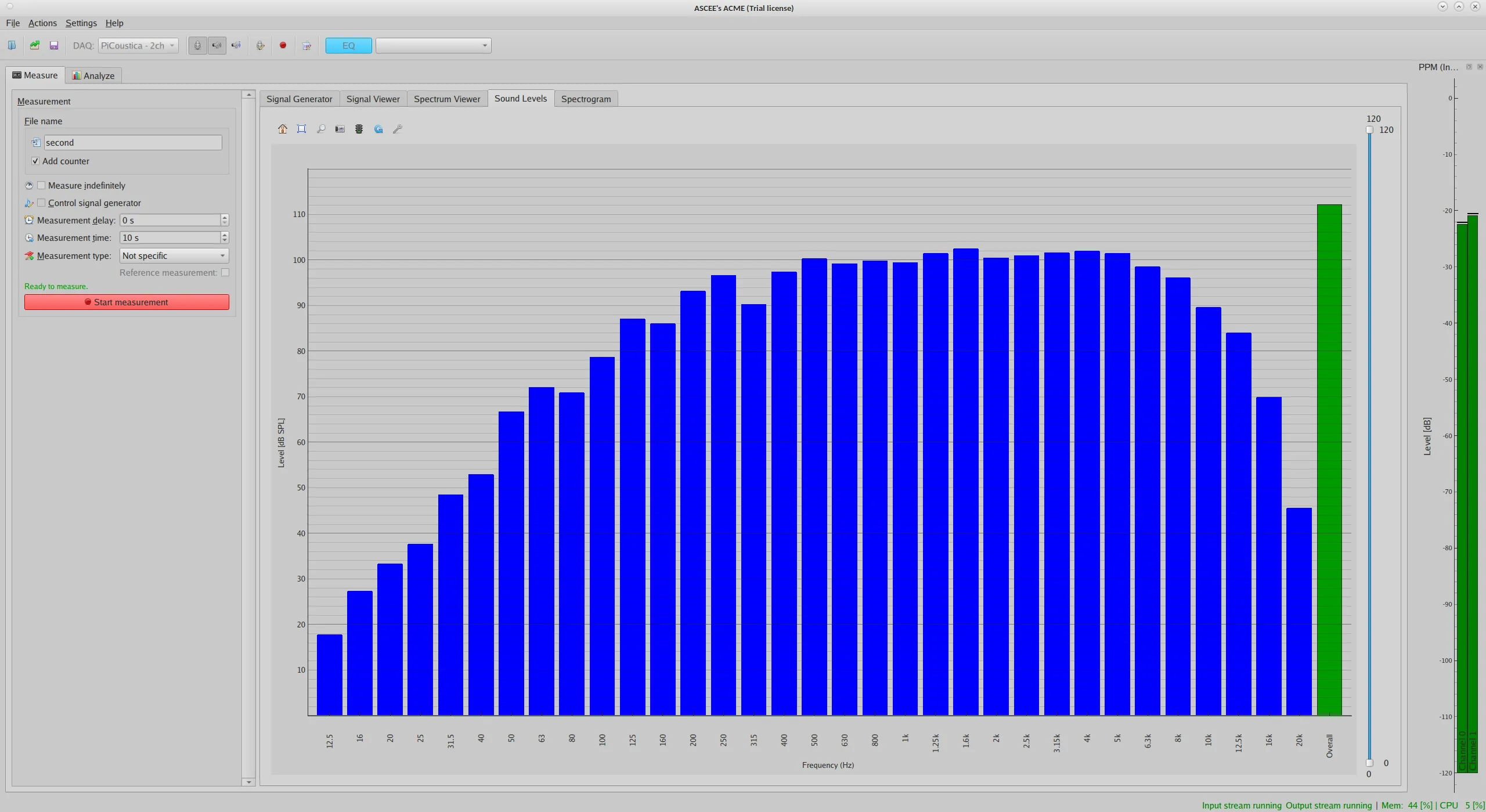

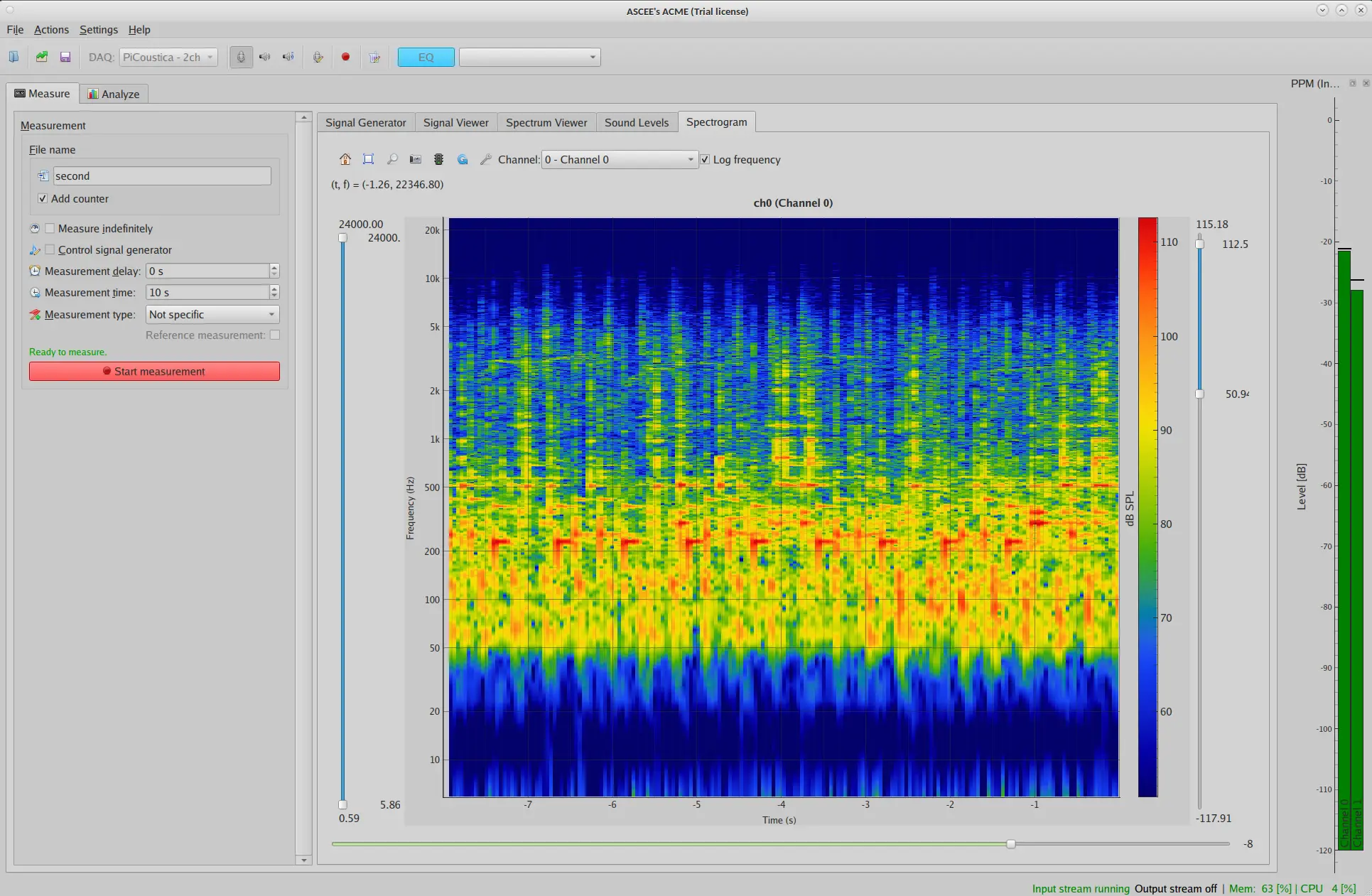

Real-time monitors: peak programme meter with clipping indication, signal viewer and spectrum viewer, spectrogram, sound level viewer.
Sensor calibration tool

Analyze

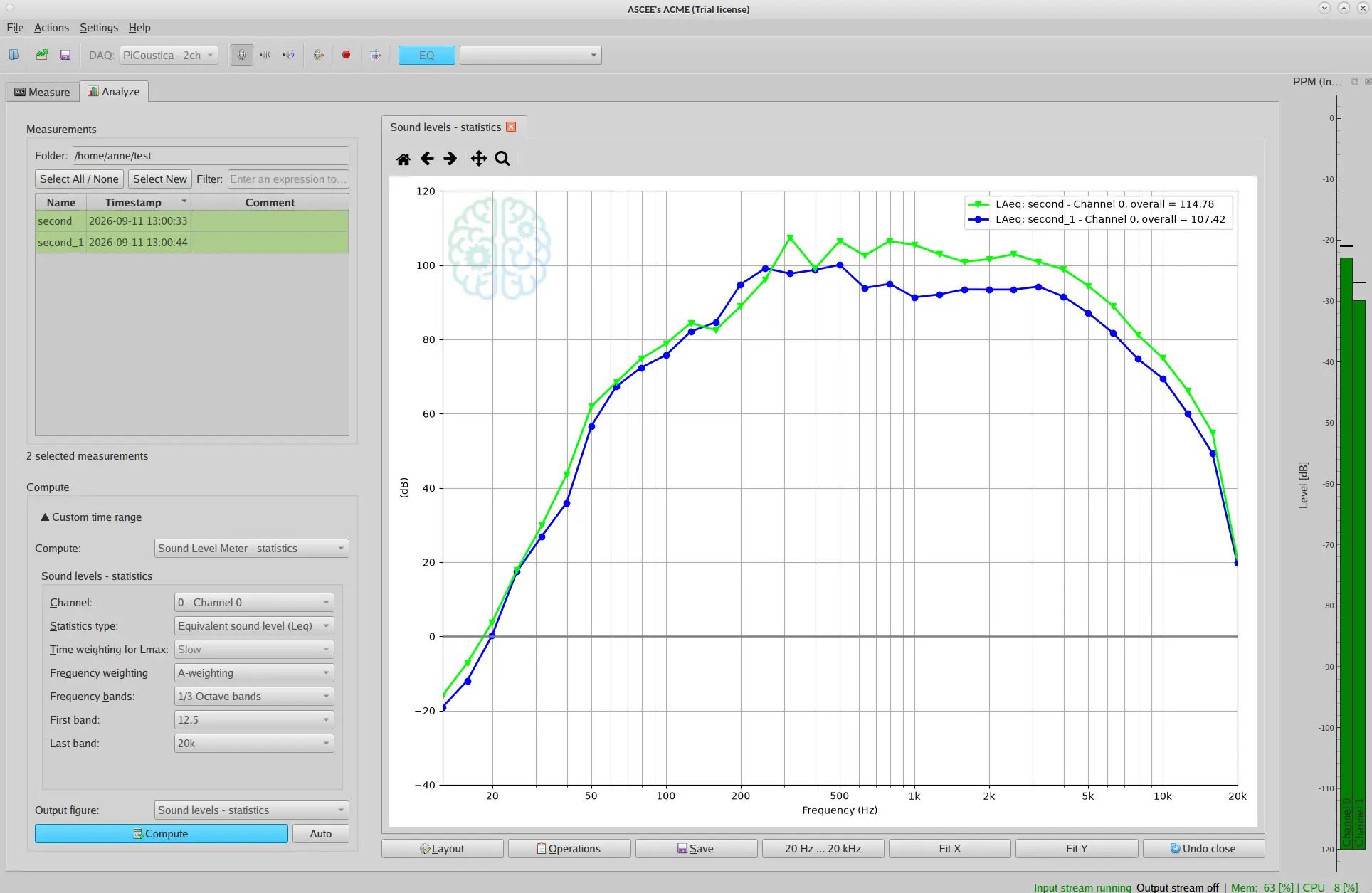

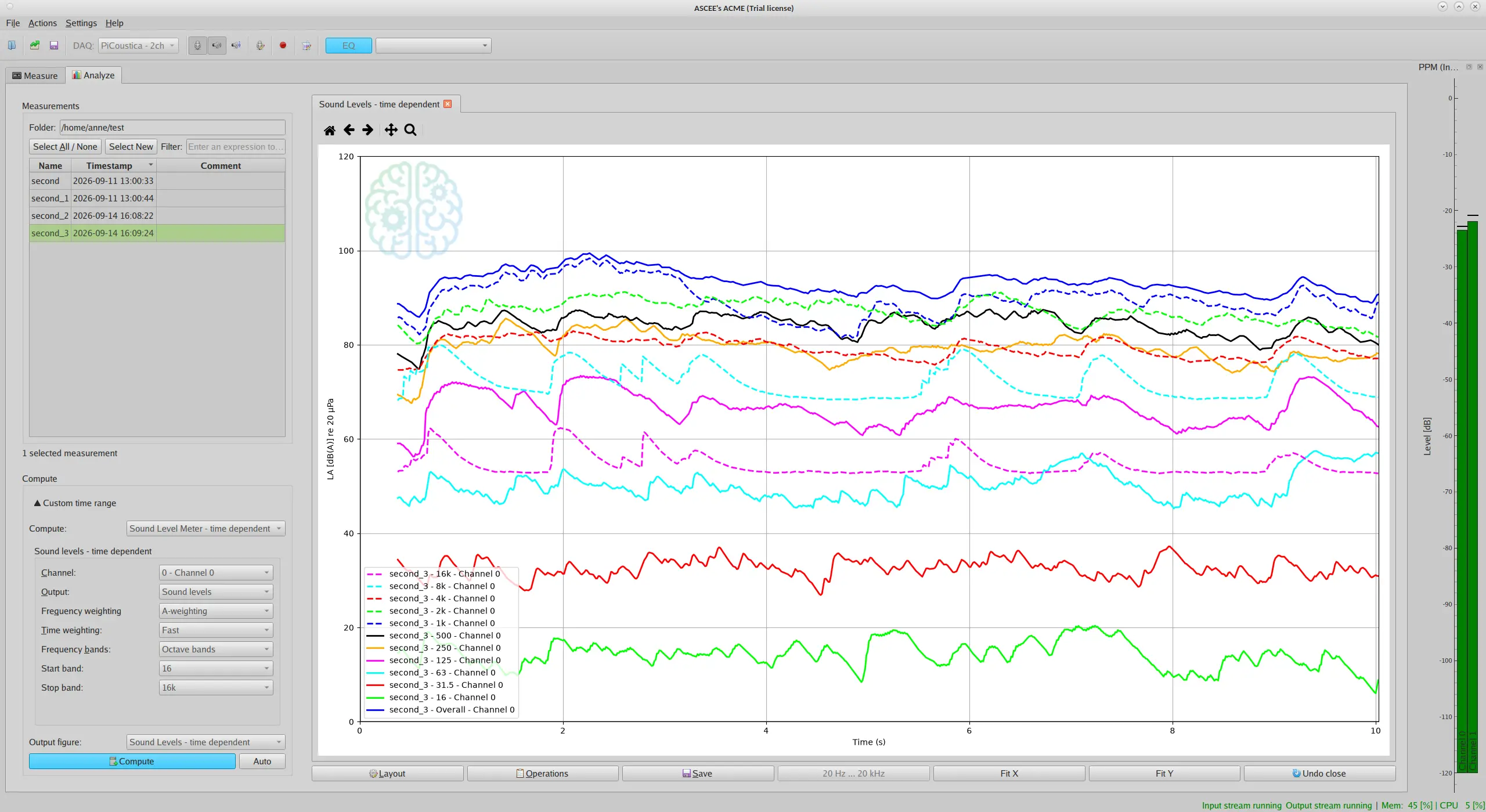

Sound levels vs time with A-, C- and Z frequency weighting and Fast / Slow / Impulse time weighting
Overall, octave-band and 1/3-octave-band levels
Sound level statistics: maximum, peak and equivalent levels
FFT analysis: auto powers with configurable window, FFT length, window and overlap
Transfer function and coherence determination
Insertion loss measurement
Plot editing, comparison and export to XLSX, CSV and NPZ

Note: PiCoustica includes the core ACME measurement and analysis functionality. The µZ impedance-tube module is not included. Documentation is available at acme.ascee.nl.

The package

What's in the box

PiCoustica is the DAQ and analysis box. To start measuring, you still need one or two measurement microphones (or accelerometers) and cabling. Need help with selecting sensors? Tick the box in the pre-order form.
